Snuff Packaging Machine
Snuff Packaging Machine
The Snuff Packaging Machine is a specialized system designed for the efficient and precise packaging of snuff tobacco products. This machine is tailored to handle various forms of snuff, including powder and paste, ensuring that the packaging process maintains product integrity and quality. With advanced technology, this machine is ideal for manufacturers seeking to optimize their production capabilities while complying with industry standards.
Technical Data
| Model | SK-300BF | SK-600BF | SK-900BF |
| Packing speed | 20-40 cuts per minute/per column |
20-40 cuts per minute/per column |
20-40 cuts per minute/per column |
| Columns | 2-4 Columns | 3-10 Columns | 4-16 Columns |
| Bag Size | L:50-180mm W:20-70mm | L:50-180mm W:20-95mm | L:50-180mm W:20-105mm |
| Film Width Film Thickness |
Max:300mm; 0.07-0.1mm |
Max:600mm; 0.07-0.1mm |
Max:900mm; 0.07-0.1mm |

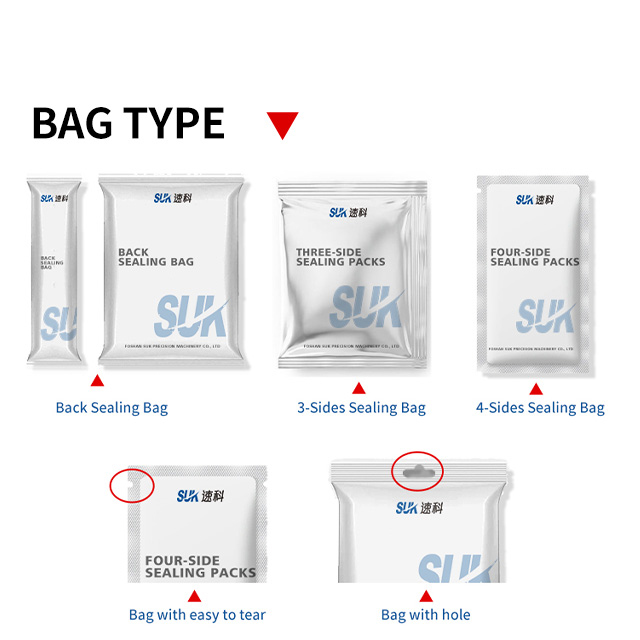

| Bag Seal type | Back Seal, Three Side Seal, Four Side Seal | Back Seal, Three Side Seal, Four Side Seal | Back Seal, Three Side Seal, Four Side Seal |
| Cut type |
1.Flat cut 2.Serrated cut 3.Round corner cut 4.Shaped cut |
1.Flat cut 2.Serrated cut 3.Round corner cut 4.Shaped cut |
1.Flat cut 2.Serrated cut 3.Round corner cut 4.Shaped cut |
| Power | 3.5KW | 5.5KW | 7.5KW |
| Power supply | AC220V 1phase 50Hz/ AC380V 3phases 50Hz | AC220V 1phase 50Hz/ AC380V 3phases 50Hz | AC220V 1phase 50Hz/ AC380V 3phases 50Hz |
| Air consumption | 0.8m³/min 0.8Mpa | 0.8m³/min 0.8Mpa | 0.8m³/min 0.8Mpa |
| Dimension | 1385*918*2005 mm | 1685*1300*2005mm | 1700*1600*2500mm |
| Weights | 400kg | 600kg | 950kg |
Application Range
- Snuff tobacco (powdered, flavored)
- Moist snuff
- Chewing tobacco
- Herbal snuff
- Nicotine pouches
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
