High Speed Liquid Multi Lanes Stick Packaging Machine
High Speed Liquid Multi Lanes Stick Packaging Machine
The High Speed Liquid Multi Lanes Stick Packaging Machine is an advanced packaging solution designed to handle the efficient and precise packaging of liquid products into stick packs. This machine is ideal for high-volume production environments, offering multiple lanes for simultaneous packaging, which significantly increases output. It’s perfect for products like sauces, syrups, oils, and other liquid formulations that require precise portioning and secure packaging.
Technical Data
| Model | SKD-280MLL | SKD-560MLL |
| Track Number | 4~6 Track | 8~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup | 1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup |
| Capacity | Max.35 cycle/min | Max.35 cycle/min |
| Sachet Size | L:50--180mm; W:17-30mm | L:50--180mm; W:17--30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Backsealing/ Stick bag/Four sided sealed/Irregular bag | Backsealing/ Stick bag/Four sided sealed/Irregular bag |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting |
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw |
| Device size | 1100MM(L)*990MM(W)*2100MM(H) | 1100MM(L)*990MM(W)*2100MM(H) |
| Machine weight | 560KG | 560KG |

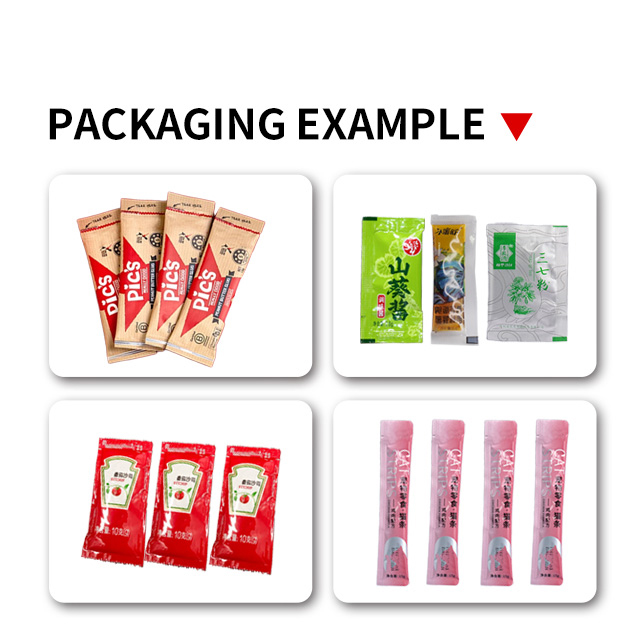

Application Range
- Liquid condiments (soy sauce, ketchup)
- Single-serve drink mixes (juice concentrates, energy drinks)
- Pharmaceutical liquids (oral suspensions, syrups)
- Personal care products (shampoos, lotions)
- Industrial liquids (lubricants, detergents)
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
