Laundry Liquid Filling Line
Laundry Liquid Filling Line

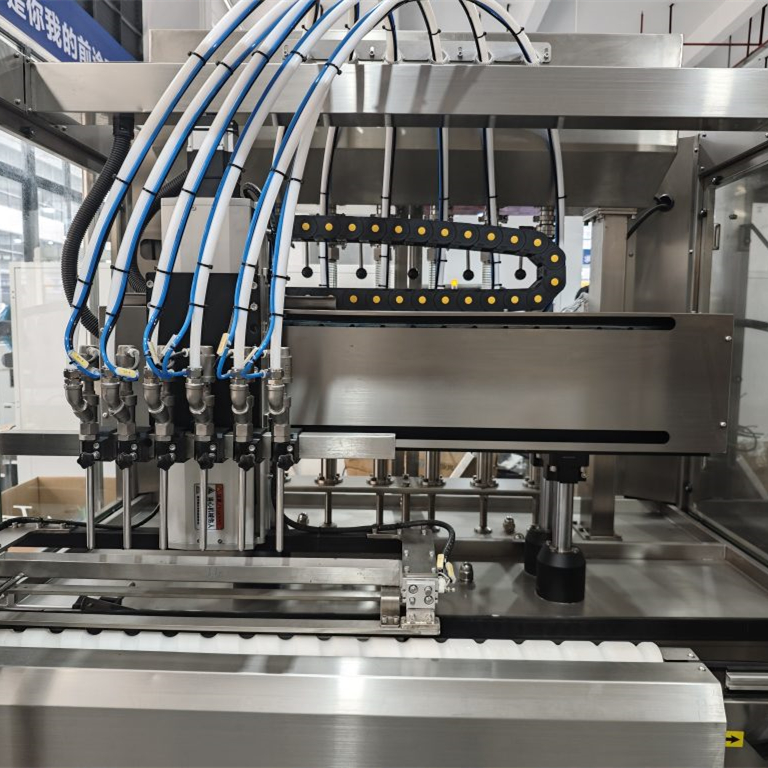

The Laundry Liquid Filling Line is an advanced automated system designed for precise and efficient filling of laundry liquids and detergents into various types of containers. This line integrates filling, capping, and labeling processes, ensuring a seamless and high-speed production flow. It is ideal for both small and large-scale production environments, offering flexibility and scalability.
Technical Data
| Model | SK-GZL-6L | SK-GZL-8L | SK-GZL-10L | SK-GZL-12L |
| Filling range | 50 ~ 1000ml | 50 ~ 1000ml | 50 ~ 1000ml | 50 ~ 1000ml |
|
Filling speed |
< 30bottles/min ( Base on100 ~ 500ml ) | < 40bottles/min ( Base on100 ~ 500ml ) | ＜50bottles/min (Base on100 ~ 500ml ) | <60bottles/min ( Base on100 ~ 500ml ) |
|
Measurement accuracy |
± 1% | ± 1% | ± 1% | ± 1% |
| Power | 1.75kw. 220v | 2.1kw. 220v | 2.5kw, 220v | 2.8kw. 220V |
|
Working air pressure |
6- 7kg/cm² | 66- 7kg/cm² | 66- 7kg/cm² | 6- 7kg/cm² |
|
Gas consumption |
05-0.7m³/min | 05-0.8m³/min | 0.6-0.9m³/min | 0.8-1m³/min |
|
Weight |
450kg | 500kg | 550kg | 600kg |
Application Range
- Laundry detergents
- Fabric softeners
- Liquid soaps
- Disinfectants
- Other liquid cleaning products
NOTE: The information listed in the chart is strictly indicative and will depend on the specific features of each machine.
